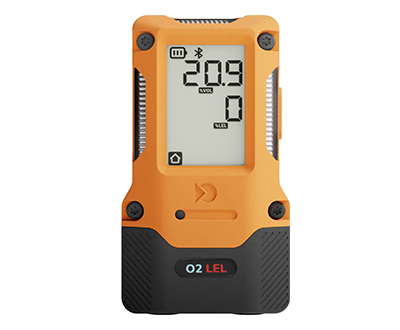

UNOIQ

UnoIQ is a rugged, reliable and compact single-gas detector, built to perform even in the toughest environments. With a long-lasting rechargeable battery, modular sensor technology, and seamless connectivity to Crowcon Connect via Bluetooth®, UnoIQ simplifies asset management while maximizing safety and compliance.

DEVICE SPECIFICATIONS:

SIZE Standard: 96 x 55 x 32 mm
Deep tray: 106 x 55 x 32 mm
WEIGHT** 135g (Weight may vary depending on configuration)
DURABILITY 6m drop test
RESPONSE TIME (T90) <10s (sensor dependent)
ALARMS Visual, vibrating, audible (95dB at
10cm), low/high, TWA, STEL
DISPLAY Backlit segment display
DATA LOGGING Up to 500 event logs
POWER & BATTERY*
Toxics and O2: 10 days continuous
(31 days at 8 hour shifts)
IR: 1 day continuous (4 days at 8 hour shifts)
Pellistor: 1 day continuous (3 days at 8 hour shifts)
Recharge time: 0-80% 2 hours; 0-100% hours
SAMPLING None
OPERATING TEMPERATURE RANGE -20 to +55°C / -4 to +131°F
HUMIDITY 0-95% RH
INGRESS PROTECTION IP66 & IP68
APPROVALS
CSA US: Class I, Division 1, Groups A, B, C, D T4*
ATEX: Ex II 1G Ex ia IIC T4 Ga
IECEx: Ex ia da IIC T4 Ga
INMETRO: Ex ia IIC T4 Ga*
RED/FCC/IC: Wireless
